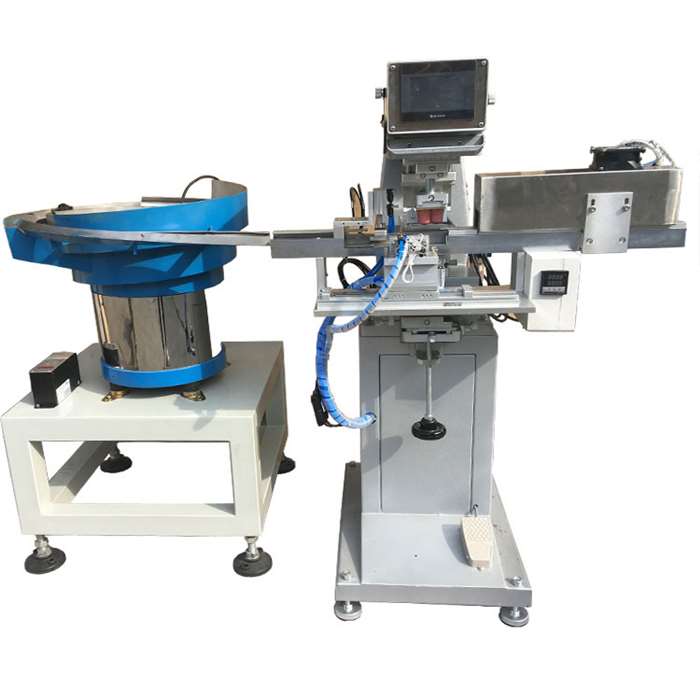

Product introduction:
1. PLC controls each function action, man-machine interface, simple and convenient operation;
2. Vibrating disc automatic feeding and unloading system, sensitive action;
3. Two forks send three beads from the vibrating disc outlet to the printing position, while the other one delivers the printed beads to the toothed conveyor belt for delivery and drying.
4. Use oil-cup inking, the ink concentration is stable, no solvent is needed within 6-8 hours, the ink is not easy to volatilize, saving more than 50% of the ink, and the operating environment is clean and comfortable.
5. It is equipped with a safety shield, which meets the safety requirements.
6. Oil cups are easy to disassemble and assemble and durable.
7. Residence time of each location can be adjusted to meet different printing requirements.
8. Two ink-dipping and one printing can be done to obtain larger printing ink.
9. Unique cup-shaped edge structure, clean and neat scraping oil, clear and beautiful transfer products;
10. It has the function of automatic hot air drying.
Technical parameters:
Oil cup diameter: Eh 90 mm
Steel plate size: 100x250
Maximum printing speed: 1000pcs/hr (blank line)
Compressed air pressure: 5-7 (bar)
Free air consumption: 230 (L/min)
Rated power: 1000W
Rated voltage: 1 AC 220V +10% 50Hz
Rated current: 10A
Noise value: <80 DB
Machine outline size: 1800x1350x1600mm
Weight: 400 kg
